A search for an InSinkErator Badger 5 replacement returns pages that contradict each other. One describes a unit that comes with a power cord. Another describes one that has to be hardwired. The model name alone cannot settle which one you are looking at. The manufacturer’s own sheet says both are true at once.
The Badger 5 submittal sheet lists the unit as available with or without a factory-installed power cord. One name, two electrical builds, straight from the spec sheet. That is the first reason to stop treating “Badger 5” as a replacement instruction. Ask a buyer what they own and they name the model. Ask how it connects, how tall it is, or which mount it hangs on, and the model name has already stopped answering.
An InSinkErator Badger 5 replacement, sourced by an importer to sit where the old unit sat, is not a matter of matching a name. It is a matter of matching an interface. Those are different jobs, and the gap between them is where a “same spec” order turns into a plumbing call.
InSinkErator® and Badger® are trademarks of their respective owners. Major is not affiliated with, authorized by, or endorsed by InSinkErator. The name is used here only to identify the existing unit a buyer may be replacing.
What the name leaves out
A model name carries two things reliably: the brand, and the grinding class. Badger 5 tells you 1/2 HP, continuous feed, induction motor. That is real information, and it is where most published guides stop.
It is also where the installer’s problem starts. Several fields never travel with the name. The body height under the sink. The diameter that has to clear the cabinet and the trap. The height of the discharge outlet. How the unit connects to power. Where the dishwasher inlet sits. Two units can share a horsepower rating, or even belong to the same product family, without matching every installation interface.
So the useful question is not “is it a Badger 5.” It is a different question: what does the thing under the sink actually measure. What follows walks the fields that decide a swap. It starts with the one that trips people first.
Which power connection did you actually get
The Badger 5 ships in more than one electrical build. The manufacturer’s submittal sheet states it plainly: available with or without a factory-installed cord. There is also a separate cord kit, the CRD-00, sold on its own for the versions that arrive bare.
Read the buyer reviews and the confusion is right there. One owner opens the box expecting a cord and finds none, because that build was meant to be wired directly to a switched circuit. Another reuses the cord from the old unit because the new one came without one. The grind is the same across these builds. The connection is not.
For a replacement, that one field decides how clean the swap is. Say the old unit plugged into a switched outlet and the new one arrives set for hardwiring. The install then needs a cord kit, an approved wiring path, or a different SKU. If the old install was hardwired and the new unit shows up with a molded cord, the site may need a switched receptacle instead. Neither is a defect. Both are a mismatch nobody specified.
We build units for corded-and-plug use and for field hardwiring. We set the connection by destination market rather than shipping one wiring style everywhere. Which one belongs on a given order is a field we quote, not a surprise in the carton. The reasoning behind matching the connection to the market is its own subject, covered in cord, plug or hardwired.
Horsepower is a grinding class, not an interface
One correction in passing, because it drives a lot of bad swaps. Matching 1/2 HP does not match the installation. Horsepower describes the grind, not the body envelope, the mount, or the electrical connection. Two units at the same rating can present a different load and a different fit. We took that apart in wattage versus horsepower, and it applies here without change.
“Twist-on” only covers one motion
The other shortcut worth naming: a twist-on mount only helps when the new unit belongs to the same mount family already on the sink. The Badger 5 sheet notes that its mounting collar configuration is a registered trademark. That is a reminder: a mounting collar is a specific engineered shape, not a generic interface. Three fastening points do not by themselves mean two collars share geometry, locking tabs, gasket stack or throat size. Reusing an existing mount is a question of whether the new unit’s mount system genuinely matches the collar already on the sink. Measurement confirms that, not a bolt count. We mapped the families we build to in 3-bolt versus EZ mount.

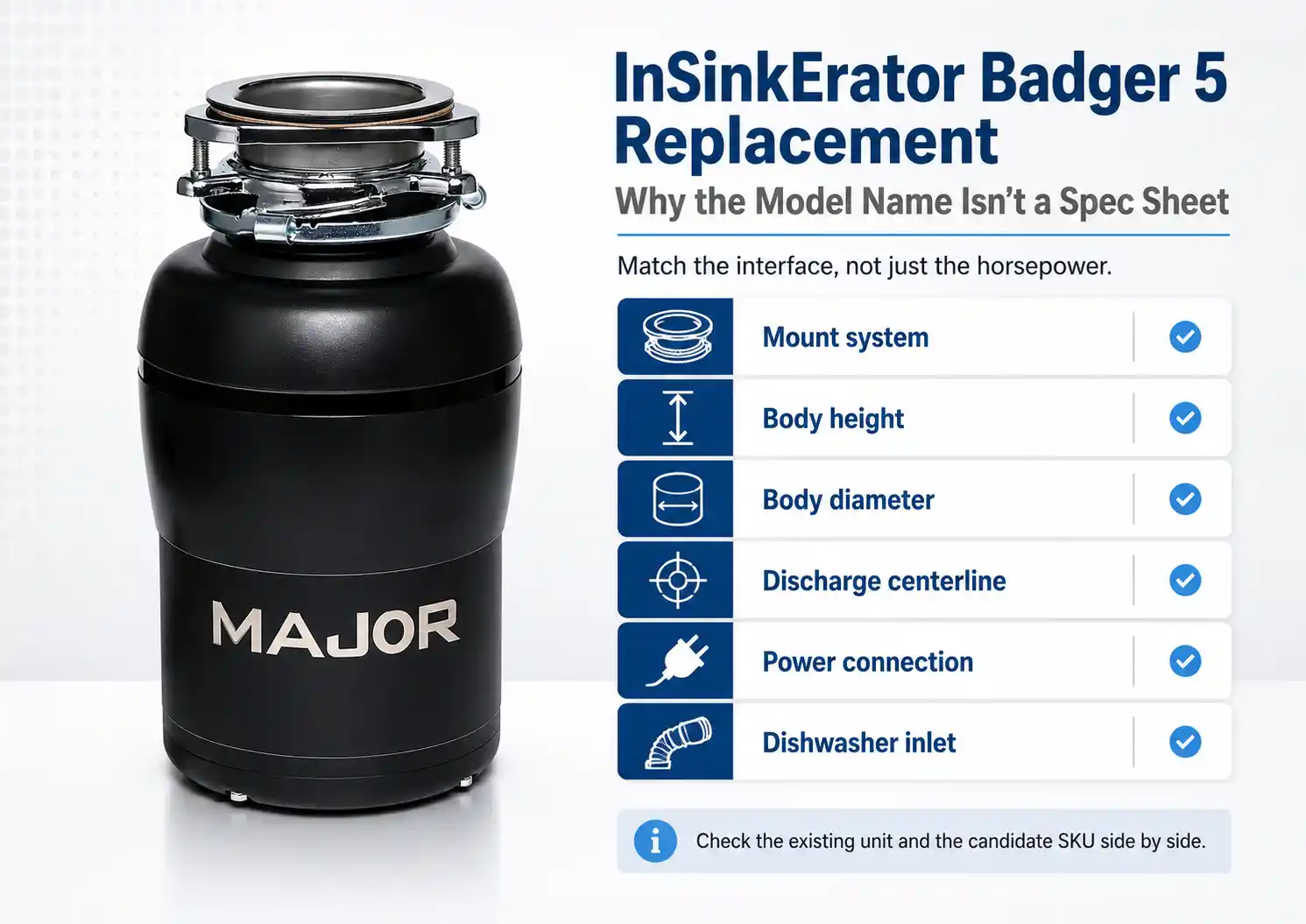

The fields to measure before a swap
Here is the checklist an importer can source against. The manufacturer’s sheet supplies some of these figures directly. Others are not on the public sheet, and have to come off the actual unit with a tape measure. The point is to know which is which.
| Fitment field | Existing installation | Candidate SKU |
|---|---|---|
| Exact mount system and locking geometry | Measure the existing unit and collar | Request the candidate mount drawing or physical measurement |
| Body height under the sink | Record sink underside to disposer base clearance | Compare with the published or measured SKU height |
| Maximum body diameter | Measure clearance to the trap and cabinet wall | Request the candidate SKU maximum diameter |
| Discharge outlet centerline | Record the current outlet height from the sink underside | Compare with the candidate outlet centerline |
| Power connection by SKU | Check cord-and-plug or field-hardwired installation | Confirm the exact carton build and market power package |
| Dishwasher inlet position | Record whether the hose is used and where it lands | Confirm inlet presence, knockout and relative position |
The manufacturer sheet supplies some values. Mount geometry, maximum diameter and the exact power build may still require SKU-level or physical verification.
The discharge centerline is the quiet one. The Badger 5 sheet puts it at six inches from the bottom of the sink to the centerline of the outlet. If your candidate unit’s outlet sits higher or lower than that, the waste arm no longer lines up and the P-trap gets rebuilt. The Spruce’s testing of other InSinkErator models makes the same point from the homeowner side. One install needed extra pipe-alignment work. Another had trouble seating the unit onto the mount. A standard 3-1/2 inch sink opening confirms the flange passes through the hole and nothing below it.
The dishwasher inlet has its own fitment check. On a unit set up for a dishwasher connection, the inlet is a knockout plug. It has to be driven out before the hose goes on. Leave it in place and the dishwasher cannot discharge through the disposer connection. On a unit with no dishwasher connection at all, there is nothing to knock out and nowhere to land the hose. Whether the inlet exists, and where it sits relative to the existing hose, is the sixth field. It is invisible on a horsepower line.
What we can hand you, and what needs a tape measure
Here is where our side of it sits. For a specific Major model, we can give you the same fields as measured numbers. Each is tied to a measurement basis and a drawing revision. We quote one model, not the range as a whole, since our AC, DC and BLDC platforms differ in size and mount. That covers body height, maximum diameter, discharge outlet centerline, mount family, the splash-guard dimension for that mount, the dishwasher inlet, and the market power connection.
What we do not do is tell you those numbers land where your old unit’s numbers were. We have not measured the unit under your customer’s sink. A published spec sheet is a starting reference, not a fit confirmation. That holds especially for mount geometry, which a shared bolt count does not settle. Put our measured figures for the exact model beside the manufacturer’s sheet for the old unit. The matches and the gaps show themselves.
In May 2026 a distributor in Mexico asked whether our units could go where a major brand’s disposers had been. His work is mostly home renovation. We did not answer with a yes. We sent the field list and offered our measured numbers for a specific model. His installers checked those against what was already in the cabinets. That is the honest version of a replacement answer. Here is what we are, measured. Here is what you are replacing. You own the comparison.
Send us the model you are replacing and the destination market. We will send our measured spec for a matching model to set beside it.
FAQ
Can I replace a Badger 5 with any other 1/2 HP disposal?
Not on horsepower alone. Match the body height, mount system, outlet centerline and power connection instead.
Does the Badger 5 come with a power cord?
It depends on the build. The manufacturer’s sheet lists it as available with or without a factory-installed cord, and a separate cord kit exists for the bare versions. Check which build you have before you assume the next unit connects the same way.
Can I reuse my existing mount?
Only if the new unit’s mount system genuinely matches the collar already on your sink. A twist-on action assumes the collar fits to begin with, and a matching bolt count does not prove matching geometry. Confirm the mount by measurement, then the motion.
Are Badger 5, 500, 5XL and 5XP interchangeable?
The model names alone do not establish that. Their published plumbing dimensions may run close, but a name is not a spec. Pull the current manufacturer sheet for each exact SKU, then compare the outlet centerline, the mount, the dishwasher connection, the power build and the overall dimensions before you treat any two of them as equivalent for a swap.
Should I repair a leaking Badger 5 or replace it?
It turns on where the leak is — top flange, side dishwasher hose, or the bottom of the housing. We walked through that split in repair or replacement.
Sources
Manufacturer documentation
- InSinkErator — Badger 5 official product page. Used as the manufacturer product reference. The dimensional and electrical figures quoted in the article come from the manufacturer submittal/specification sheet identified as document H901-19L-64-10 (2019): available with or without a factory-installed power cord; 1/2 HP; 120 V; 60 Hz; 1,725 RPM; 6.3 A average load; 11-1/2 in overall height; 6 in from the bottom of the sink to the disposer outlet centerline; 4 in dishwasher connection; and 1-1/2 in cushioned slip-joint drain connection. Verify the live manufacturer sheet and revision for the exact SKU before quotation.
- InSinkErator — CRD-00 Power Cord Installation Kit. Manufacturer accessory reference for a separate cord kit used with compatible disposer models. The exact compatibility and installation path should be checked against the disposer instructions and cord-kit instructions.
Buying-page conflict and installation evidence
- Better Homes & Gardens — The Best Garbage Disposals. Cited only to document a buying-page description that presents the Badger 5 as a twist-in, plug-in product. It is not used as the controlling SKU specification.
- Food & Wine — The Best Garbage Disposals. Cited only to document the conflicting description that hardwire installation is necessary. The manufacturer submittal resolves the conflict by stating that the model is available with or without a factory-installed cord.
- The Spruce — The Best Garbage Disposals. Used as limited hands-on evidence from specific InSinkErator installations: one test reported difficulty seating a unit onto the mount, while the article also discusses outlet, hardwiring and under-sink fit. These observations are not presented as Badger 5-specific statistics.
- The Spruce Eats — The Best Garbage Disposals. Used only as a secondary reference for the Badger 5XP product-family discussion and the claim that same-brand twist-on installation may simplify a replacement. It does not establish cross-model or cross-brand interchangeability.
Cross-model and trademark boundary
No interchangeability claim is made for Badger 5, Badger 500, Badger 5XL or Badger 5XP. The FAQ instructs readers to retrieve the current manufacturer sheet for each exact SKU and compare the mount, dimensions, power build and dishwasher connection. InSinkErator® and Badger® are trademarks of their respective owner. Major (Wanjiamei Technology Development Co., Ltd.) is not affiliated with, authorized by or endorsed by InSinkErator.
Major internal sources
Statements about supplying SKU-level measurement sheets, drawing revisions, AC/DC/BLDC platform differences, destination-market power configurations and the May 2026 Mexico home-renovation inquiry are based on Wanjiamei Technology Development Co., Ltd. product, drawing and correspondence records. Before publication, the cited inquiry should be cleared for public use and any candidate replacement comparison should identify the exact Major model, drawing revision, measured height, maximum diameter, outlet centerline, mount version, splash-guard dimension, dishwasher inlet and cross-fit test status. Fit against an installed unit still requires physical measurement.
Source-control note: the manufacturer submittal is identified by document number because its direct current PDF URL was not exposed in the indexed manufacturer pages available during this review. Keep the document number in the article record and replace or supplement the product-page link with the live official PDF URL when it is available.
